The Plate Pasteurizer is a highly efficient and energy-saving thermal processing equipment designed for liquid foods such as milk, juice, beverages, alcohol, and other fluid products. It performs pasteurization and heat exchange through a plate heat exchanger, ensuring precise temperature control, compact structure, and easy cleaning. The system can be configured for automatic, semi-automatic, or manual operation and is compatible with filling systems, storage tanks, and CIP cleaning units.
Working Principle
The plate pasteurizer uses a multi-layer stainless steel plate heat exchanger where heat is transferred between hot and cold fluids to achieve heating and cooling. A typical pasteurization process for milk includes the following stages:
1. Preheating – The incoming milk is preheated by the hot outgoing milk.
2. Heating – Milk is heated to 72–85°C by hot water or steam.
3. Holding – The product is held for 15–30 seconds to destroy harmful microorganisms.
4. Cooling – The milk is cooled first in the regeneration section, then with cold or chilled water to 4–5°C for filling or storage.

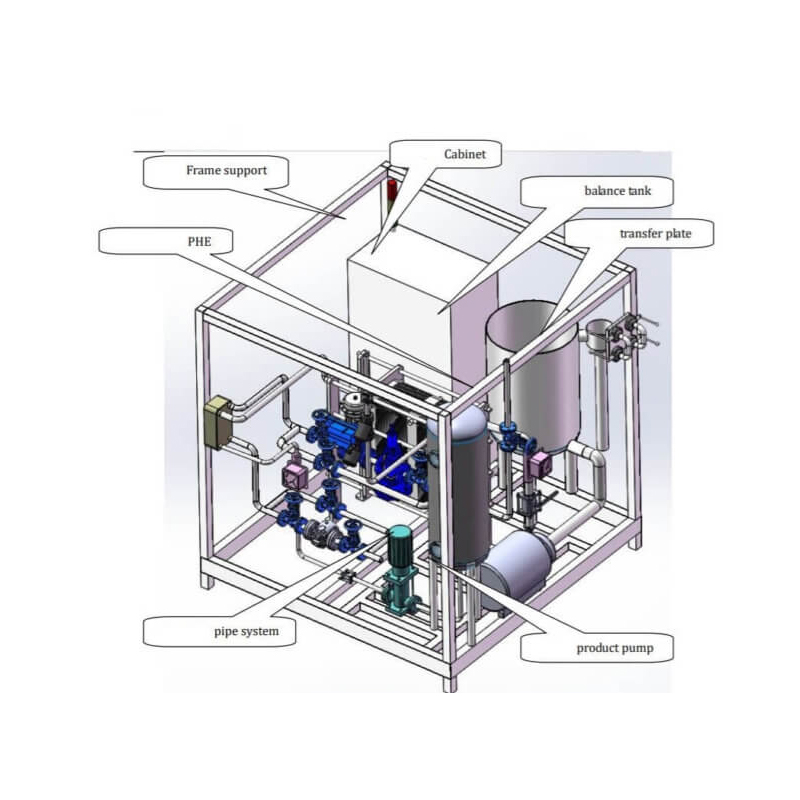

System Components
● Feed Pump – Ensures stable material flow and system pressure.
● Plate Heat Exchanger – Made of food-grade stainless steel SUS304/316L; high heat transfer efficiency and easy to clean.
● Heating System – Uses steam or hot water, equipped with automatic temperature control for stable heating.
● Holding Tube – Maintains milk at high temperature for a fixed time to ensure sterilization.
● Cooling Section – Uses cold or chilled water to cool the product to the desired temperature.
● Automatic Control System – PLC-controlled for automatic regulation of temperature, flow, and time, with data monitoring capability.
Main Features
● High Efficiency and Energy Saving – Up to 90% heat recovery rate.
● Accurate Temperature Control – PID automatic control with ±0.5°C precision.
● Hygienic and Safe – Entirely made of stainless steel, meeting food-grade standards and easy to clean.
● Compact Design – Small footprint, convenient for operation and maintenance.
● Multi-Functional – Suitable for pasteurization, regeneration, cooling, and constant temperature processing.
● High Automation – Available in automatic, semi-automatic, and manual control modes.
Technical Parameters (Customizable)
| Processing Capacity | 0.5–20 tons/hour |
| Pasteurization Temperature | 72–85°C (adjustable) |
| Holding Time | 15–30 seconds |
| Heat Recovery Rate | ≥90% |
| Material | SUS304 / SUS316L |
| Heating Medium | Steam / Hot water |
| Cooling Medium | Cold water / Chilled water |
| Control Mode | Automatic / Semi-automatic / Manual |
| Cleaning Method | CIP cleaning interface |
| Outlet Temperature | 4–5°C (adjustable) |
Processing Capacity
● 0.5 – 20 t/h (higher capacities available on request)
Pasteurization Temperature
● 65–95°C (typical: 72–75°C for milk, 85–92°C for juice)
Heat Exchanger Type
● High-efficiency plate heat exchanger
● Optional multi-section plates: heating → regeneration → cooling
Temperature Control
● PID temperature control system
● Accuracy: ±0.3–0.5°C
● Multi-point temperature monitoring
Heating & Cooling
● Heating medium: steam / hot water
● Cooling medium: chilled water / ice water / glycol
Power Supply
● 380 V / 220 V, 50/60 Hz
Pump & Flow Control
● Sanitary centrifugal pump
● Flow control via frequency converter (VFD)
● Optional flow meter with feedback control
Regeneration Efficiency
● 70–95% (energy-saving design)
Control Options
● Manual, semi-automatic, or full PLC automatic
Material & Hygiene Standards
● Contact Material: SUS316L stainless steel
● Frame & Non-Contact Parts: SUS304 stainless steel
● Plate Material: SUS316L (standard) or titanium for acidic products
● Seals: Food-grade EPDM / NBR
● Surface Finish:
o Internal: Ra ≤ 0.6 μm
o External: brushed stainless steel
● Piping: Seamless sanitary stainless steel tubing (SUS304/316L)
● Compliance:
o 3A, EHEDG, FDA, GMP
o Design according to DIN / ASME / GB standards
Applications
● Pasteurized milk
● Yogurt base milk
● Fruit juice
● Tea beverages
● Beer wort heating
● Soy milk, almond milk, oat milk
● Liquid egg pasteurization
● Sauce and liquid food processing
Product Features & Performance
① High Heat Exchange Efficiency
● Plate heat exchanger provides large heat transfer area
● Thin plates ensure rapid heating and cooling
● Regenerative section reuses heat, reducing energy cost by up to 50%
② Precise Thermal Control
● Automatic temperature control ensures stable pasteurization
● Multiple temperature sensors for safety and accuracy
● Real-time monitoring of inlet/outlet temperatures
③ Consistent Pasteurization Quality
● Built-in holding tube ensures accurate residence time
● Ensures food safety by eliminating harmful microorganisms
● Maintains color, aroma, texture, and nutrients
④ Easy Cleaning & Maintenance
● Fully CIP-compatible
● Quick open frame for plate inspection
● Easy replacement or adjustment of plates
● Compact design reduces installation space
⑤ Flexible Configuration
● Suitable for milk, juice, tea drinks, plant-based beverages, beer wort, and more
● Continuous production, ideal for high-capacity lines
● Compatible with homogenizers, filling machines, aseptic tanks, etc.
⑥ Reliable Safety Design
● Over-temperature alarm
● Flow interruption protection
● Steam temperature limit control
● Optional automatic product diversion valve (flow diversion if temperature drops)
System Advantages
● High heat efficiency and energy saving.
● Automatic control with stable performance.
● Easy to maintain and long service life.
● Modular design for flexible installation.
● Compliant with food-grade sanitary standards (FDA / CE).
Optional Configurations
● PLC + HMI full automation
● Automatic hot water generator
● Flow diversion valve for pasteurization safety
● Vertical or horizontal plate heat exchanger layout
● Holding tube with temperature-time recorder
● Steam-water mixing or plate heating system
● Aseptic tank integration
● Stainless steel platform and piping module
